Introducing Brand New Elite Main Safety Power Switches SPS 65V 80/150A & 150/200A w/Telemetry & Magnetic/Touch or Wireless Actuator.

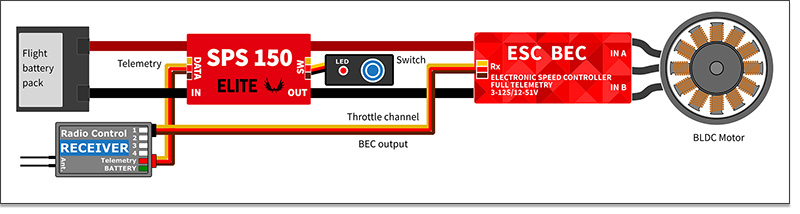

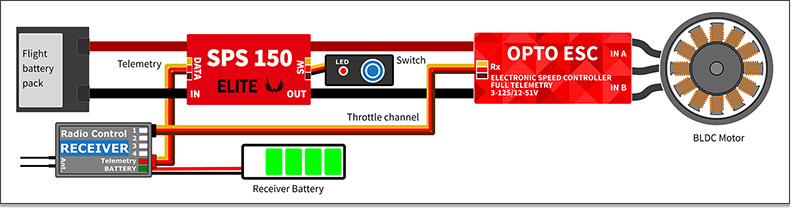

The Elite Main Safety Power Switch is an electronic primary switch designed for switching of the main power supply (Main Battery) for your RC model. It adds an element of safety when handling the model, without the need to physically disconnection of the main battery pack. The advantage of an electronic switch is that it offers a virtual unlimited On/Off cycles, unlike mechanically operated switches. The Main Switch prevents the connectors from sparking when connecting the batteries, in fact it also replaces Anti-Spark connectors.
The Elite Power TM (Touch or Magnet Operated) black anodized aluminum switch is an electronic device that can be used to turn ON and OFF the electronics in your RC model. It can replace any electronic or mechanical switch that uses a logical voltage level on its output. If setup as Touch switch you do not need any additional tools to power up your model (such as a magnet in the case of a magnetic switch). The advantage of an electronic switch is that it offers a virtual unlimited ON/OFF cycle, unlike mechanically operated switches.
Supplied TM Actuator Switch features configurable touch or magnetic hall effect (Magnetic Key Included) sensitivity, last power-on status stored in the internal memory, and very low standby current. It compliments full range of Elite products like Elite Power Main Switches, T70/T75 and Falcon ESCs with SBEC.
Power systems equipped with Elite SPS switch can be turned ON/OFF wirelessly with a simple flip of the switch using any of the Jeti DC/DS transmitters. The R3/RSW receiver fully replaces supplied TM Hall Sensor Magnetic Switch. Simply replace the TM switch, and connect SPS to the #3 port of the R3/RSW receiver.

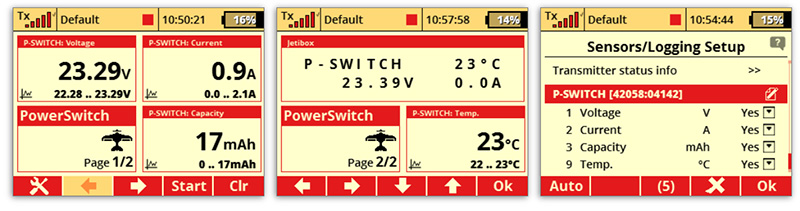

The telemetry system in the Elite Main Switch lets you monitor in real time Voltage (V), Current (A), Used Battery Capacity (mAh), and Temperature. Telemetry alarms can be set to monitor maximum current, minimum voltage, battery used capacity, and maximum temperature. It supports Jeti, PowerBox, Futaba, Graupner, FrSky and Spektrum RC Systems.
|
|
